Give Power BI access to Synapse Serverless SQL Pool

Case

I have a Service Account for my data source in the Power BI Gateway, but how do I give this account access to the (External) Tables located in the Synapse Serverless SQL Pool database?

Give Power BI Access to Delta Tables

Solution
If you create a Data Lakehouse with Synapse then at the moment you still need to put the datamart as a set of external tables in the Synapse Serverless SQL Pool to make it easily accesable for Power BI. Giving access to it is very similar to the solution we showed to give readonly access to an Azure SQL Database when you have a Data Warehouse Achitecture. For a Data Lakehouse Architecture we use  External Tables that point to a Delta Table instead of regular tables. This requires an extra step with a Database Scoped Credential.

The starting position is that you have a database in the Synapse Serverless SQL Pool with some external tables pointing to your Delta Tables within your 'golden' container. Below the basic TSQL code for setting up those External Tables.

1. First step is to create a Master Key. We need this for the second step. You can make it more secure by adding a strong password for encryption.
2. Second step is to create a Database Scoped Credential with the Managed Service Identity of the underlying Synapse Workspace. This allows us the give the underlying Synapse Workspace access to the 'golden' container instead of giving all the separate users access. There are alternatives so study the options to see which solution fits the security policy of your organization.
3. Third step is creating an External Data Source that points to your 'golden' container where the Delta Tables are stored. Notice that it uses the credential from the previous step. The location is the URI pointing to a container in a Gen2 Storage Account. ABFSS is short for Azure Blob File System Secure. The format of the URI is:  abfss://[containername]@[storageaccountname].dfs.core.windows.net/
4. Fourth step is creating an External File Format where you can specify options for your source type (CSV/Parquet/JSON/Delta/etc). In this example the format for the Delta Table is very basic.
5. The fifth and last step is creating an External Table that points to the Delta Table in your data lake. This means the data stays in the data lake and only the table structure is stored in the database. Notice the reference to your data source and file format from the previous steps. The location in the table is a folder path that starts in the root of your container and points to the Delta Table folder.

-- 1. Create Master Key for using Managed Service Identity access
CREATE MASTER KEY;

-- 2. Create Credential to use Managed Service Identity of Synapse
CREATE DATABASE SCOPED CREDENTIAL [SynapseIdentity]
WITH
    IDENTITY = 'Managed Service Identity'
;

-- 3. Create a Data source pointing to the container of your Delta tables
CREATE EXTERNAL DATA SOURCE [DeltaLocation]
	WITH (
	LOCATION = N'abfss://gold@mydevstorage.dfs.core.windows.net/',
    CREDENTIAL = [SynapseIdentity]
	);

-- 4. Create a File format for Delta tables
CREATE EXTERNAL FILE FORMAT [DeltaFormat]
    WITH (
    FORMAT_TYPE = DELTA,
    DATA_COMPRESSION = N'org.apache.hadoop.io.compress.SnappyCodec'
    );

-- 5. Create an external table
CREATE EXTERNAL TABLE [dbo].[dim_abcdef] (
    [integerfield] INT NULL,
    [stringfield] NVARCHAR (400) NULL,
    [datefield] DATETIME2 (7) NULL
)
    WITH (
    LOCATION = N'/delta/dim_abcdef',
    DATA_SOURCE = [DeltaLocation],
    FILE_FORMAT = [DeltaFormat]
    );

When you have created a whole set of those External Tables for your datamart, then you can add a user to the Serverless SQL Pool database which can be used by Power BI to create the Data Source in the Gateway.

6. First you need to create a user. For this example we used a user from Microsoft Entra  ID (Azure Active Directory). Therefor you see the FROM EXTERNAL USER. This is because our Synapse Workspace is created with the option 'Microsoft Entra authentication only'. Therefor database users or Shared Access Signatures are not allowed.
7. The second step is to give this newly added user some access. In this simplified example we give the new user db_datareader access to the entire database. If you have a larger or more complex database then you can make this much more sophisticated by for example giving reader access to only a specific schema or table.
8. The last step is giving the user permission to use the Database Scoped Credential that was used in the External Data Source that was used in the External Table. This is done with GRANT and the REFERENCES permission. Without this step you will not be able to query the External Tables.

-- 6. Service Account bekend maken op datamart database
CREATE USER [sa-pbi-workspace-d@xyz.com] FROM EXTERNAL PROVIDER;

-- 7. Service Account leesrechten geven op tabellen
ALTER ROLE [db_datareader] ADD MEMBER [sa-pbi-workspace-d@xyz.com]

-- 8. Service Account reference rechten geven op credential van Synapse
GRANT REFERENCES ON DATABASE SCOPED CREDENTIAL::SynapseIdentity TO [sa-pbi-workspace-d@xyz.com]

Conclusion

In this post we showed you how to give a user, that was created for Power BI, read-only access to the tables in your Azure Synapse Serverless SQL Pool database. Very similar to giving access to a regular database. Now you can use this user for your Power BI gateway datasource.

In the future we can hopefully use the Power BI Direct Lake mode on regular Azure Storage Accounts or write with Synapse to the Fabric One Lake.

Deploying Synapse Serverless SQL pool with DevOps

Case
The external tables and other objects in my Synapse Serverless SQL pool are not stored in the GIT repository of Synapse. How do I deploy those objects through the DTAP street?

Release Synapse Serverless SQL Pools with DevOps

Solution

You can use the good old database project in Visual Studio with the SQL Server Data Tools (SSDT) addon to store the External tables, File formats and Data Stores in a Git repository and then use Azure DevOps with YAML pipelines to release the database objects through the DTAP street. Very similar to deploying a regular Azure SQL Database with some minor differences.


1) Download Visual Studio

First download and install Visual Studio 2022 then make sure to add the SQL Server Data Tools (SSDT) extention which will add the Database project option. If you already have Visual Studio 2022 then make sure to update it because versions before 17.7 don't support SSDT for Serverless SQL pools.

Visual Studio 2022 with SQL Server Data Tools

2) Create repository

This example is for Azure DevOps, but feel free to use Github instead. Create a new repository. In the root we have two folders:

• CICD: to store all release-related files such as the YAML files. In fact there is a subfolder called YAML to store the .yml files
• SQL: to store the database project from Visual Studio.

The repository folder structure

After you have created the initial folder structure you need to clone the repository to Visual Studio by hitting the clone button in the upper right corner.

Clone repository to Visual Studio

3) Create new database project

Once in Visual Studio you now have a cloned repos folder. In the SQL folder we will create a new database project.

Cloned DevOps repository in VS2022

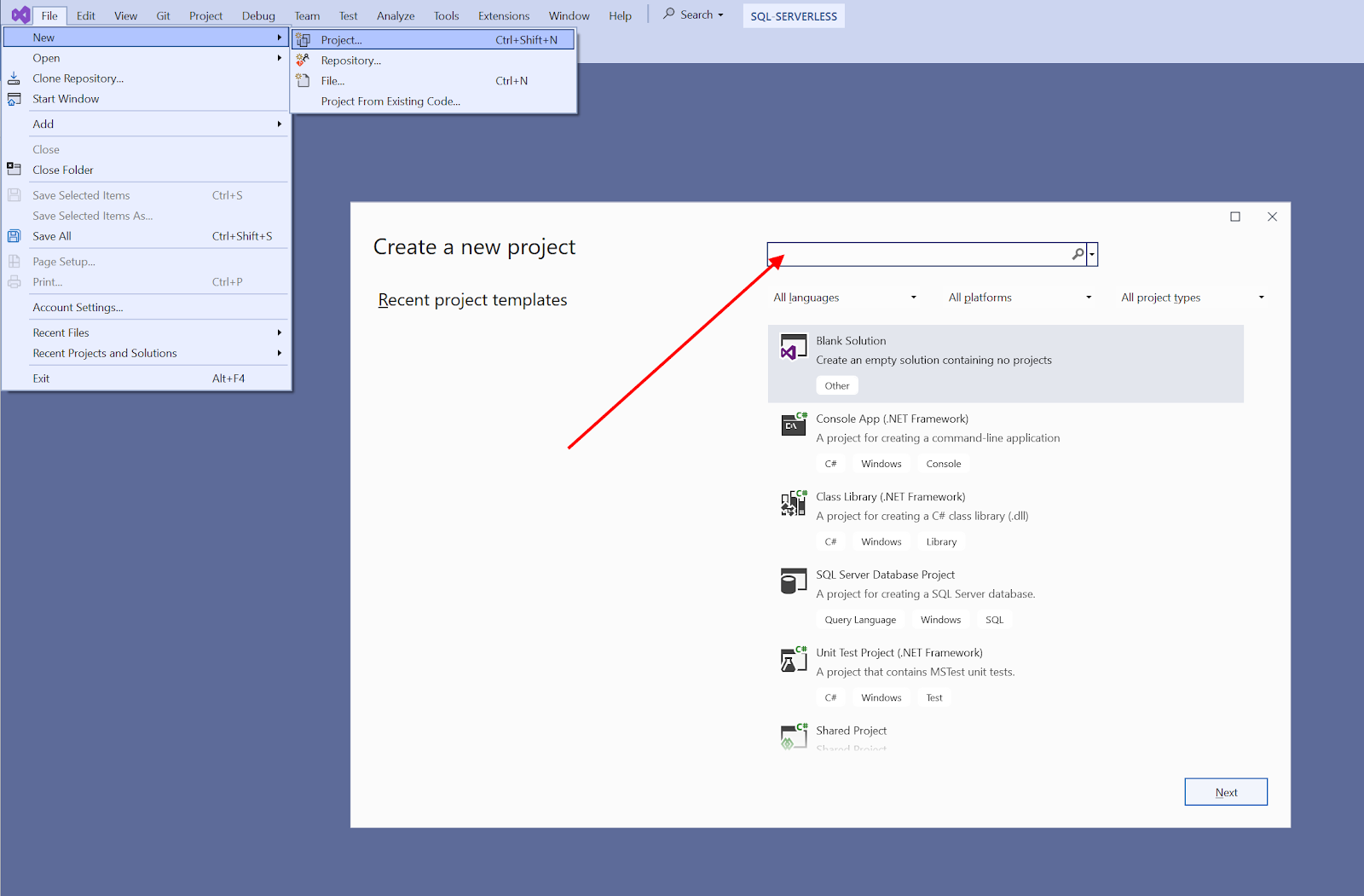

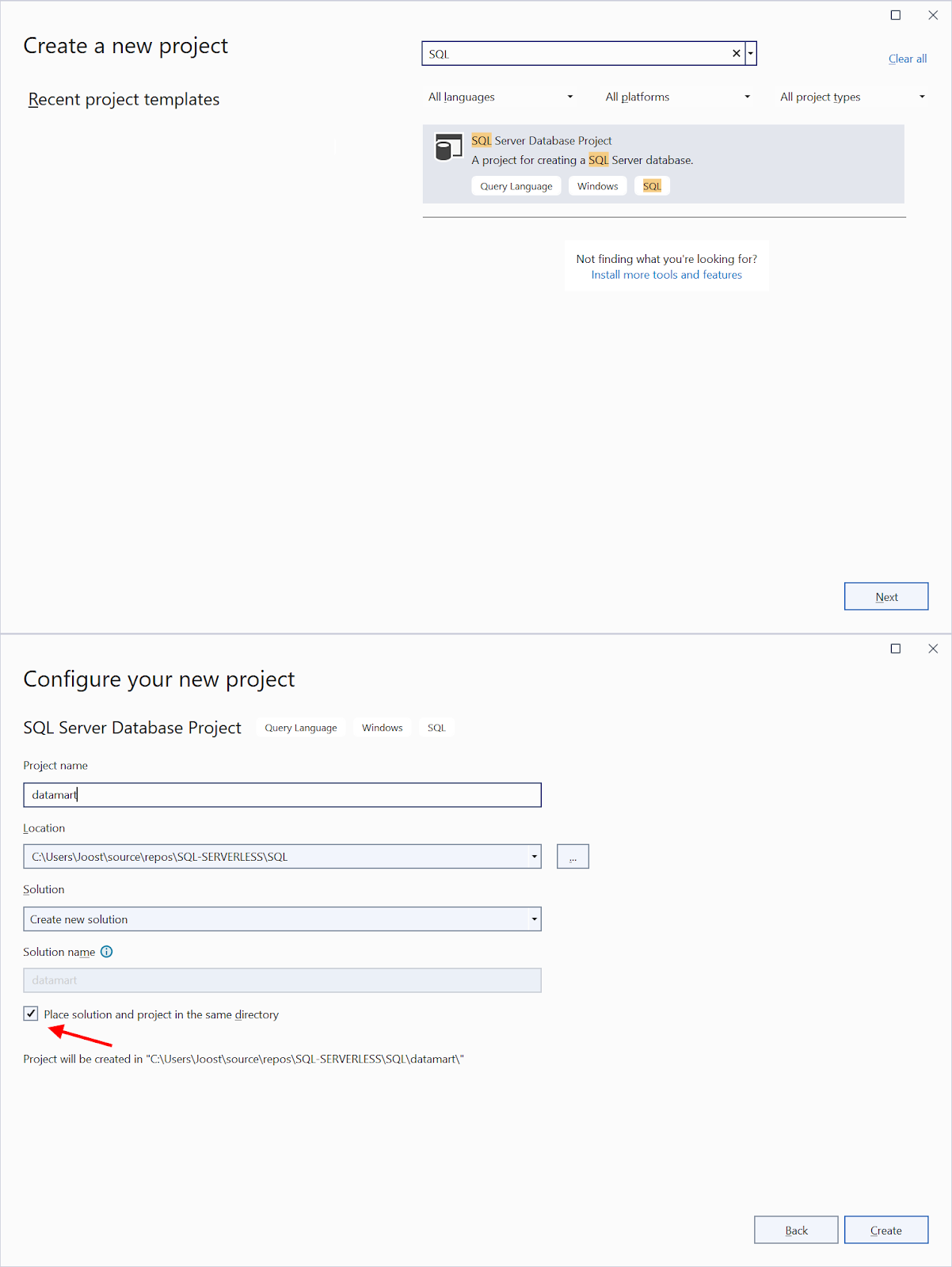

Create a new project via the File menu and search for SQL in the upper search textbox.

Create new project

Create the new SQL Server Database Project in the SQL folder from your repository. Since there will be only one project in the solution, the solution and project are stored in the same folder. Otherwise you will get an additional subfolder level.

Create new SQL Server Database Project

4) Create Azure DevOps Service Connection

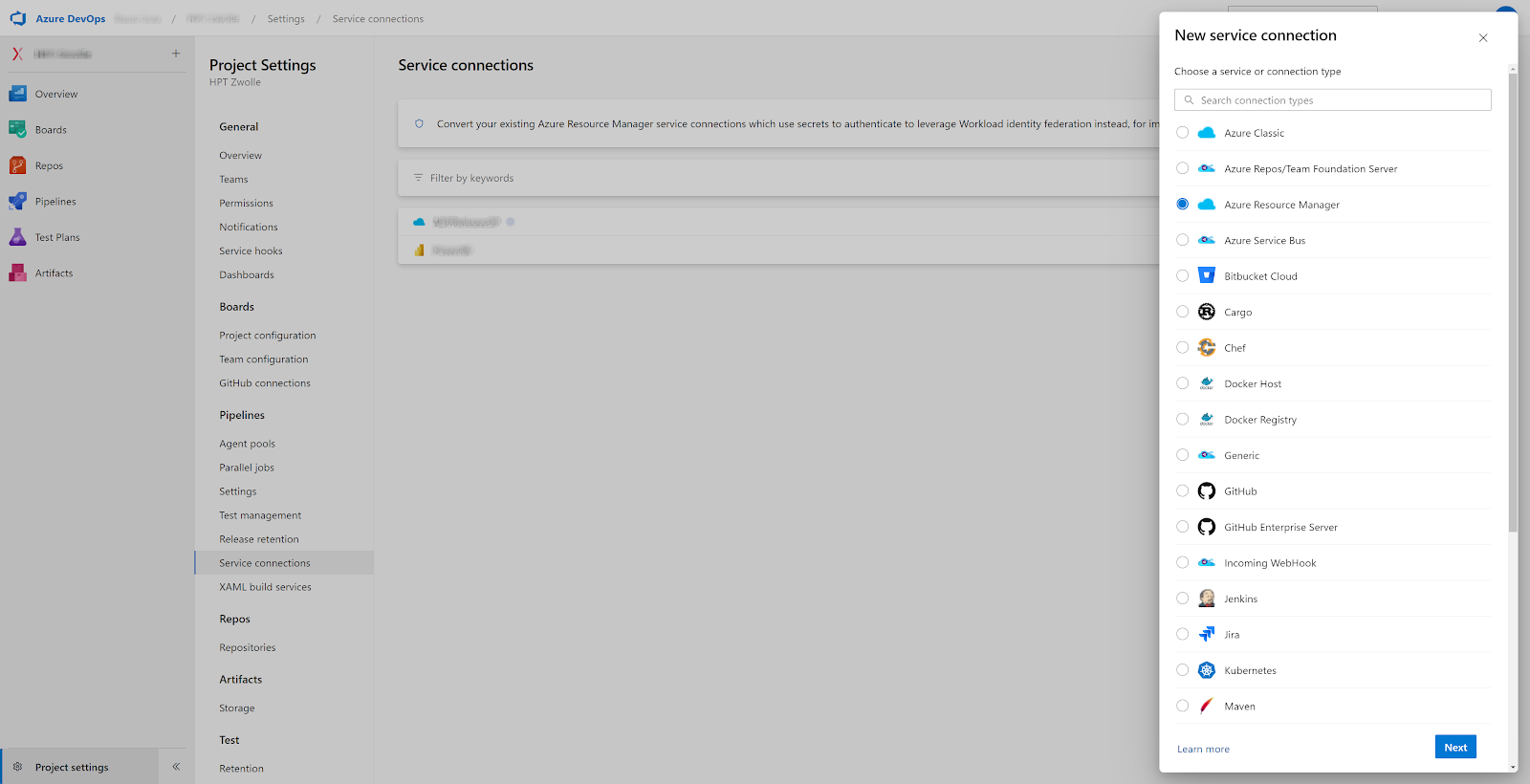

Wihtin your Azure DevOps project click on the Project settings and under Service connections create a new Service connection of the type Azure Resource Manager. You will need an Azure Entra Service Principal for this. Depending on the organization/projectsize/number of environments create one or more Service Connections. Ideally, one per DTAP environment.

Create Service Connection

5) Give Service Principal access to database

Go to Synapse and open a new SQL Script. Then either create a new database in your Serverless SQL pool to store your external tables or use an existing one. Our example database is called datamart since it will host external tables from our gold layer a.k.a. the datamart with facts and dimensions for Power BI.

Then switch to your datamart database. Either via the use-command or via the selectbox. Once you are in your datamart database create an (external) user for your Service Principal (SP) that you used in the  Azure Devops Service connection from the previous step. After that we will need to give the SP enough rights to deploy all objects to this database: db_owner

Give Service Principal access to Serverless SQL pool DB

-- First create a new database (if you don't have one)
CREATE DATABASE datamart;

-- Once created switch to your (new) database
USE datamart;

-- Create a new database use for the Service Principal
-- used in the DevOps Service Connection
CREATE USER [myserviceprincipal] FROM EXTERNAL PROVIDER;

-- Give the Service Principal enough rights to create
-- external resources and a master key
ALTER ROLE [db_owner] ADD MEMBER [myserviceprincipal];

You have to repeat this for all your Serverless SQL pool DB's in your DTAP environment. Note that if you will do the SQL development within Synapse Studio, and not in Visual Studio, then you don't need to deploy to the Development environment and then you also don't need to give a SP access to your development environment. In that case only do this for Test, Acceptance and Production.

Tip: you can also give the SP access within Synapse by either making is Synapse Adminstrator or Synapse SQL administrator. However then it's access for everything wihtin Synapse or all Serverless SQL Pool database within Synapse. If you already are using the same SP to role out Synapse with Infra as Code (with BICEP or Terraform) then it already has the Synapse Admistrator role.

6) Master Key and External Resources

For this example we will use a basic example with the following code. Note the that the DeltaLocation is pointing to the Development environment of our dataplatform. During the deployment we will need to override this since each DTAP enviroment has its own Azure Storage Account.

Create external table on delta table (for Power BI)

-- Create Master Key for using Managed Service Identity access
CREATE MASTER KEY;

-- Create Credential to use Managed Service Identity of Synapse
CREATE DATABASE SCOPED CREDENTIAL [SynapseIdentity]
WITH
    IDENTITY = 'Managed Service Identity'
;

-- Create a File format for Delta tables
CREATE EXTERNAL FILE FORMAT [DeltaFormat]
    WITH (
    FORMAT_TYPE = DELTA,
    DATA_COMPRESSION = N'org.apache.hadoop.io.compress.SnappyCodec'
    );

-- Create a Data source pointing to the container of your Delta tables
CREATE EXTERNAL DATA SOURCE [DeltaLocation]
	WITH (
	LOCATION = N'abfss://gold@mydevstorage.dfs.core.windows.net/',
    CREDENTIAL = [SynapseIdentity]
	);

-- Create an external table
CREATE EXTERNAL TABLE [dbo].[dim_abcdef] (
    [integerfield] INT NULL,
    [stringfield] NVARCHAR (400) NULL,
    [datefield] DATETIME2 (7) NULL
)
    WITH (
    LOCATION = N'/delta/dim_abcdef',
    DATA_SOURCE = [DeltaLocation],
    FILE_FORMAT = [DeltaFormat]
    );

You can encrypt the master key with an addional password. The credential with the Managed Service Identity (MSI) is so that this specific Synapse identity will be used to connect to the data source (the Delta table in your Azure Storage Account a.k.a. Datalake a.k.a. Delta Lake). This means that if you have access to the Serverless SQL Pool and its credentials, you also have access to the underlying storage account.

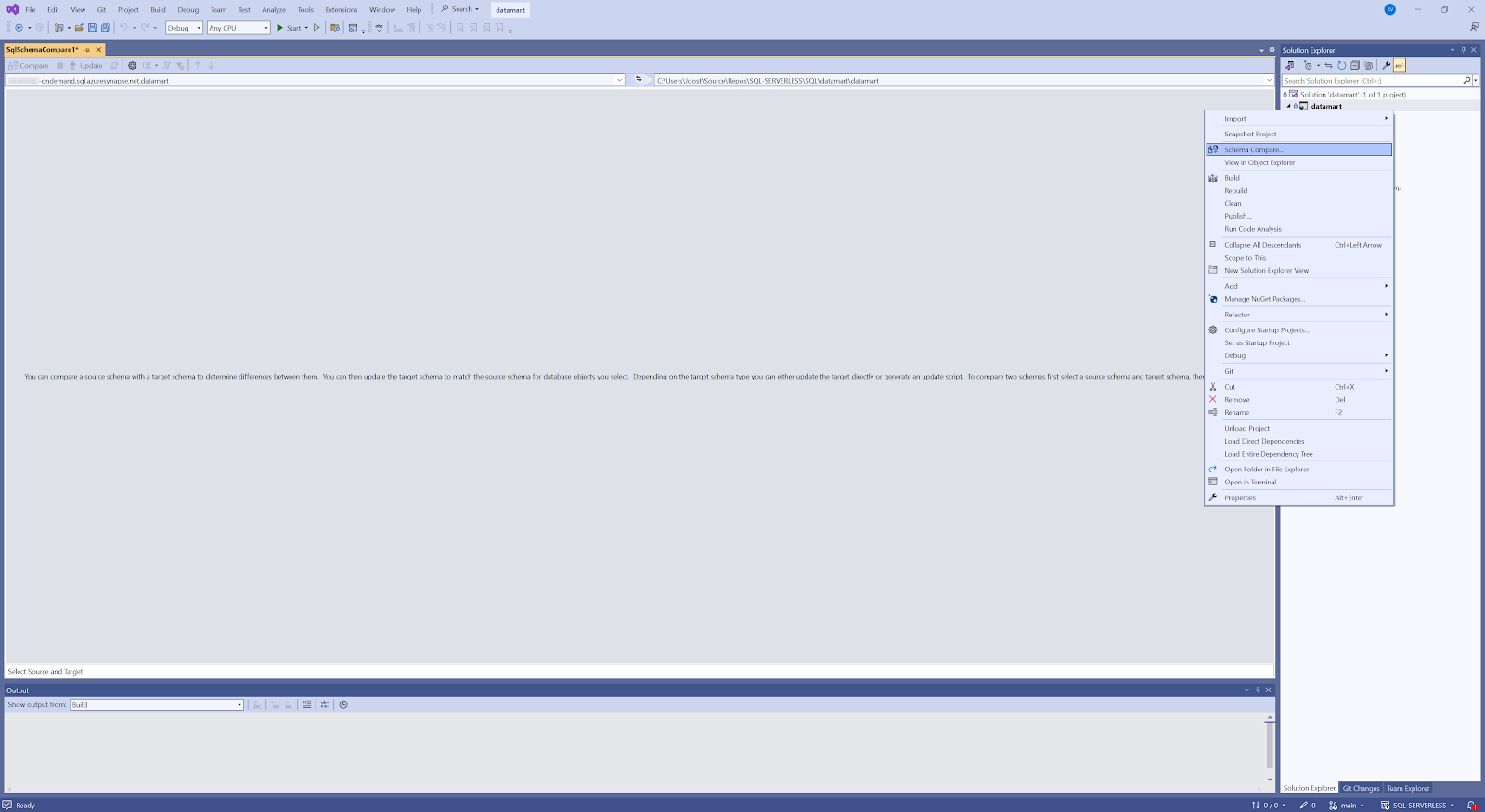

7) Schema Compare in Visual Studio

The datamart database located in the Serverless SQL pool of Synapse in the development is filled with all the above SQL objects like the external table. Now we want to get those objects to our database project. For this we need to do a schema compare in the database project by rightclicking the project in the Solution Explorer. The schema compare is between the development database and the database project.

Schema Compare

In the Schema Compare window click on options to exclude Role Memberships and Users, because this is different for each environment in your DTAP street. This will result in not showing up in the list to compare. Otherwise you have to uncheck those each time you do a schema compare.

Application-scoped

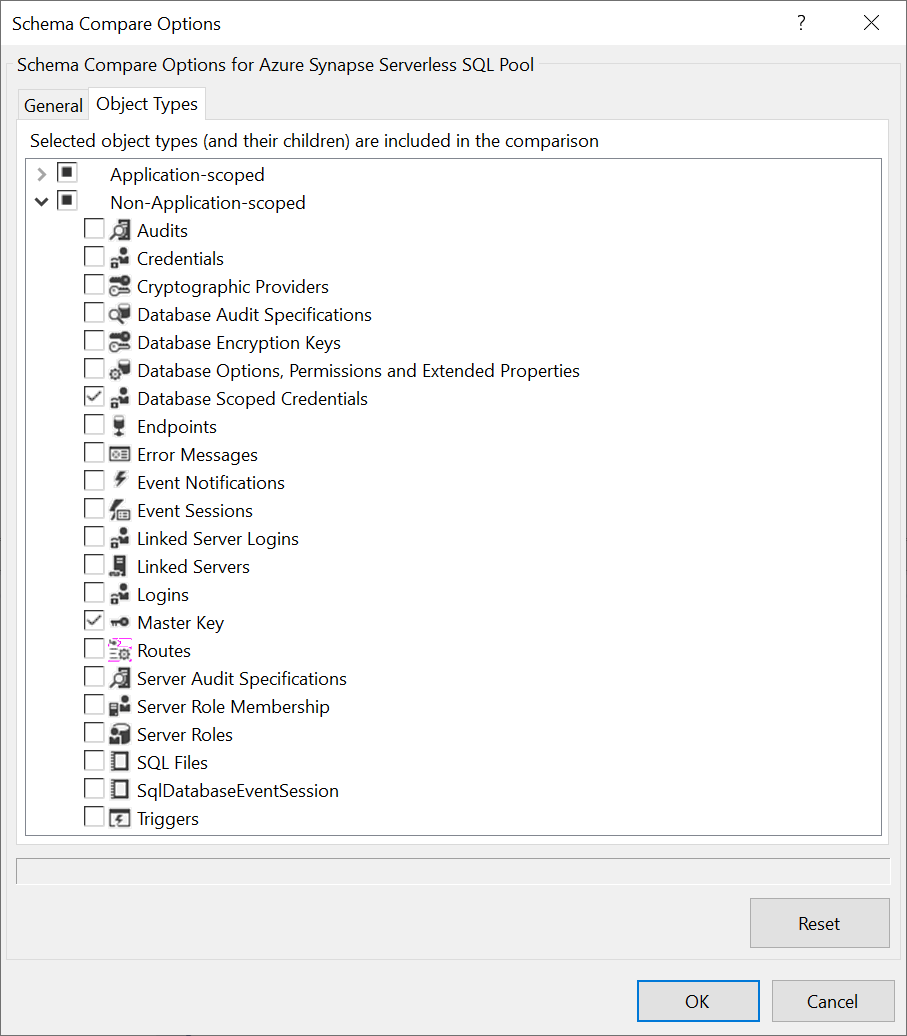

You also want to add Database Scoped Credentials and Master Key in the Non-Application-scoped section. These are the first two items in the script from the previous step. Without these your external tables won't work in the test/acceptance/production database. Click OK to confirm the settings.

Non-Application-scoped

Now make sure your dev database is on the left side in the schema compare and the database project is on the right side. You can find the URL of your Serverless SQL pool in the Azure portal on the overview page of your Synapse. It's called Serverless SQL endpoint and looks like [synapsename]-ondemand.sql.azuresynapse.net.

Azure Synapse Workspace overview page

Then hit the Compare button to see all the new objects that are not yet in your project. Tip: save this schema compare (including the changed options) in your database project. Then you can reuse it.

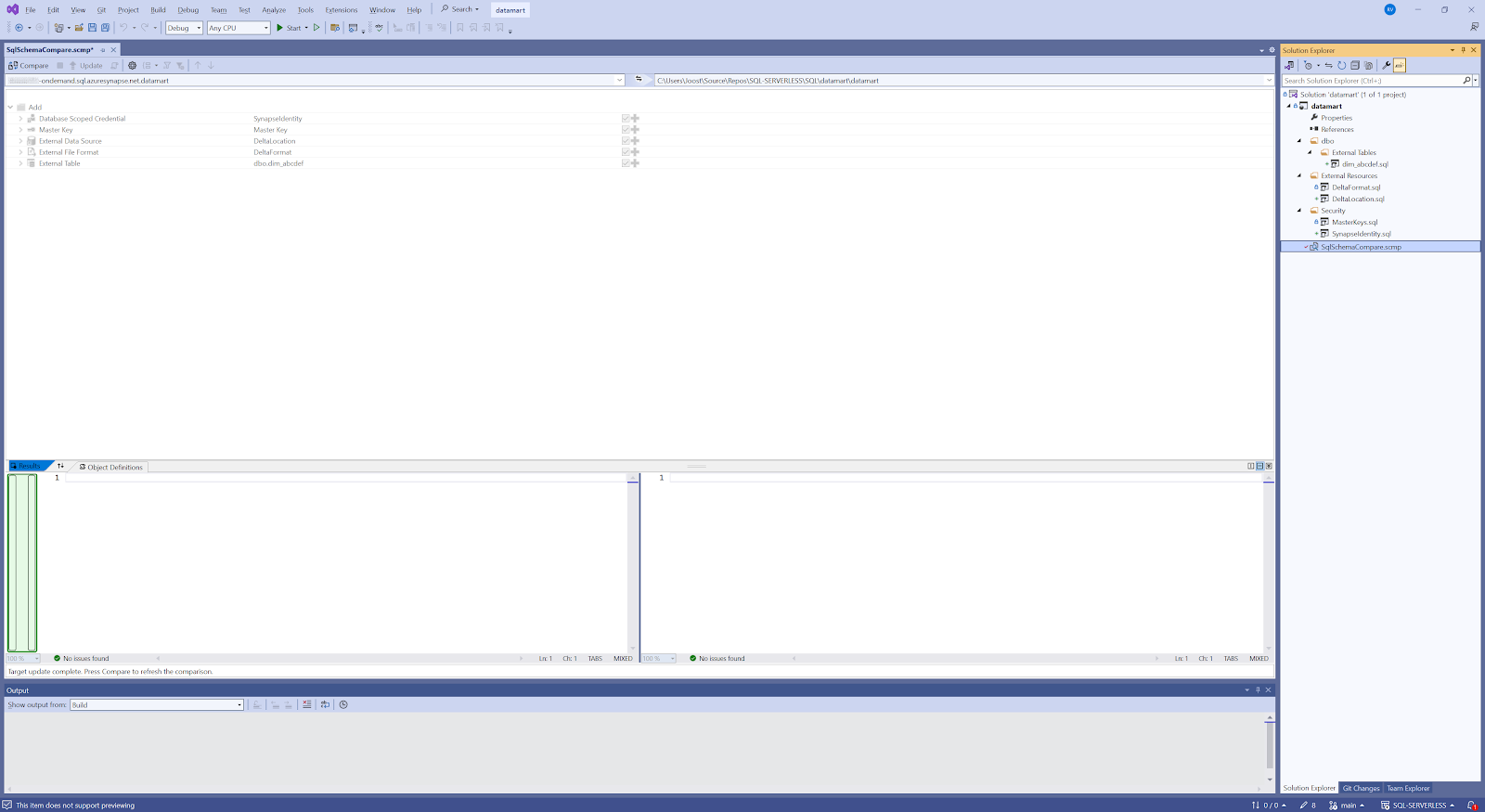

Result of schema compare

Verify the objects and hit the Update button to include them in your database project.

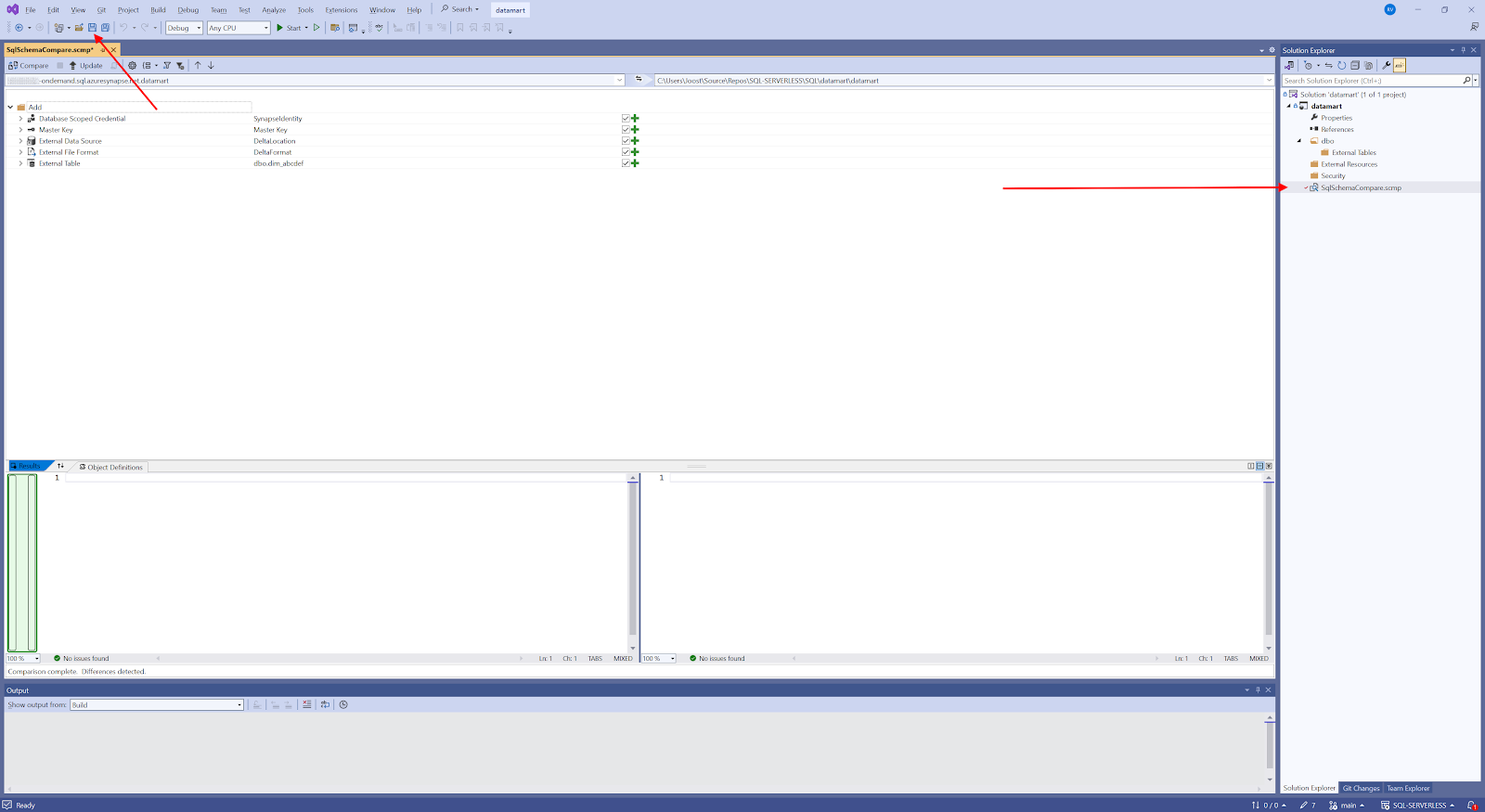

Result of the update

8) Override location of External Data Source

If you open the external data source, you will notice the hardcoded URL of the gold container in the development environment. Replace that URL by $(DeltaLocation)

Replace hardcoded URL by variable

Go to the properties of your project (not the solution) and then go to the SQLCMD Variables. Enter a new variable called $(DeltaLocation) and enter the URL of your Development environment (the URL you just replaced). You only need to fill in the Default column. Save it.

Add variable to SQLCMD Variables

Now we need to create a Publish Profile file, which we can override during deployment in the YAML pipeline from Azure DevOps. Right click the project (not the solution) and click Publish. In this window fill in the values from your development environment (we will replace them later on): target database connection and the value of the SQLCMD variable. Then hit the Create Profile button which will add the Publish Profile file to your database project. After that Cancel the window because we will not publish via Visual Studio.

Publish Profile

9) Stage, Commit and Sync repository

The changes in Visual Studio need to go back to the repository in Azure DevOps. Brance strategy and brance policies are ignored in the explanation to keep things short and simpel.

Commit and sync changes to Azure DevOps repos

Now all changes are stored in the Azure Repository. Next step is setting up the CICD proces.

Azure DevOps repository

10) Pipeline Libarary - Variable Groups

To make the YAML scripts reusable for mulitple Serveless SQL pools of your DTAP street we need to create some Variable Groups in Azure DevOps. You can find them under Pipelines - Library. You need one for each of your DTAP environments and opionally one for general variables that don't change between the environments.

DevOps Variable Groups

Is this case we will store the database project name and the database name in the general variable group.  You could just use one variable because they probably often have the same value.

• SqlDatabaseName - Name of the database within the Serverless SQL Pool
• SqlProjectName - Name of the database project within Visual Studio

For the environment specific variable groups we have the name of the SQL server name which is equals to the Synapse Workspacename. So if you are also deploying the Synapse workspace then you could reuse that one. The other one is the storage account location.

• ADLSLocation - For replacing the storage account URL between environments
• SqlServerName - For storing the name of the server (equals to Synapse workspacename)

11) YAML pipelines

Last development step is setting up the YAML files. This example has two YAML file located in the CDCD\YAML folder of the repository. Tip: Visual Studio Code has some nice YAML editors, but you can also just use the Azure DevOps website to create and edit the YAML files.

BuildSqlServerless.yml

The YAML starts with some general steps, like reading the variable group from the previous step. Then showing that it triggers when in one of those 4 branches a change happens in the SQL folder.

Step 1, checkout, is to get the repository content to the agent.

Step 2, treeview, is just for debugging and showing you all files on the agent. Useful for step 3

Step 3, build, builds the database project that was just retrieved from the repository

Step 4, copy, copies the files required for deployment to a artifact staging folder

Step 5, publish, publishes the artifact so that it can be used in the next YAML file

###################################
# General Variables
###################################
variables:
  - group: SQLServerlessParamsGen

###################################
# When to create a pipeline run
###################################
trigger:
  branches:
    include:
    - development
    - test
    - acceptance
    - main
  paths:
    include:
    - SQL/*

stages:
###################################
# Create DacPac Artifcat
###################################
- stage: CreateSQLArtifact
  displayName: Create SQL Artifact (dacpac)

  jobs:
  - job: Job
    displayName: 'Build DacPac'
    workspace:
      clean: all
    pool:
      vmImage: 'windows-latest'
      # name: my-agentpool
    steps:

    ###################################
    # 1 Retrieve Repository
    ###################################
    - checkout: self
      displayName: '1 Retrieve Repository'
      clean: true

    ###################################
    # 2 Show treeview of agent
    ###################################
    - powershell: |
        Write-Output "This is the folder structure within Pipeline.Workspace"
        tree "$(Pipeline.Workspace)" /F
      displayName: '2 Treeview Workspace'

    ###################################
    # 3 Build Visual Studio project
    ###################################
    - task: MSBuild@1
      displayName: '3. Creating Artifact'
      inputs:
        solution: '$(System.DefaultWorkingDirectory)/SQL/$(SqlProjectName)/$(SqlProjectName).sqlproj'
        msbuildArchitecture: x86
        msbuildVersion: latest

    ###################################
    # 4 Stage dacpac and publish.xml
    ###################################
    - task: CopyFiles@2
      displayName: '4. Copy Artifact'
      inputs:
        contents: |
          **\*.dacpac
          **\*.publish.xml
        TargetFolder: '$(build.artifactstagingdirectory)'

    ###################################
    # 5 Publish dacpac and xml artifact
    ###################################
    - task: PublishPipelineArtifact@1
      displayName: '5. Publish Artifact'
      inputs:
        targetPath: '$(Build.ArtifactStagingDirectory)'
        artifact: 'SQL_Dacpac'
        publishLocation: 'pipeline'

After that is calls the second YAML file that does the actual deployment. Because we want to reuse is for all environments you need to pass some parameter values that are comming from the variable groups from the previous step. The hardcoded parameter is the name of Azure DevOps Service Connection that uses the SP to connect to the database. The env parameter is just for some logging/debugging purposes to show to which environment you are deploying.

###################################
# Deploy Test environment
###################################
- stage: DeployTst
  displayName: Deploy TST
  variables:
    - group: SQLServerlessParamsTst
  pool:
    vmImage: 'windows-latest'
    # name: my-agentpool
  condition: and(succeeded(), eq(variables['Build.SourceBranchName'], 'test'))
  dependsOn: CreateSQLArtifact
  jobs:
    - template: DeploySqlServerless.yml
      parameters:
        env: TST
        ServiceConnection: SC-Synapse-T
        SqlServerName: $(SqlServerName)
        SqlDatabaseName: $(SqlDatabaseName)
        SqlProjectName: $(SqlProjectName)
        ADLSLocation: $(ADLSLocation)

###################################
# Deploy Acceptance environment
###################################
- stage: DeployAcc
  displayName: Deploy ACC
  variables:
    - group: SQLServerlessParamsAcc
  pool:
    vmImage: 'windows-latest'
    # name: my-agentpool
  condition: and(succeeded(), eq(variables['Build.SourceBranchName'], 'acceptance'))
  dependsOn: CreateSQLArtifact
  jobs:
    - template: DeploySqlServerless.yml
      parameters:
        env: ACC
        ServiceConnection: SC-Synapse-A
        SqlServerName: $(SqlServerName)
        SqlDatabaseName: $(SqlDatabaseName)
        SqlProjectName: $(SqlProjectName)
        ADLSLocation: $(ADLSLocation)

###################################
# Deploy Production environment
###################################
- stage: DeployPrd
  displayName: Deploy PRD
  variables:
    - group: SQLServerlessParamsTst
  pool:
    vmImage: 'windows-latest'
    # name: my-agentpool
  condition: and(succeeded(), eq(variables['Build.SourceBranchName'], 'main'))
  dependsOn: CreateSQLArtifact
  jobs:
    - template: DeploySqlServerless.yml
      parameters:
        env: PRD
        ServiceConnection: SC-Synapse-P
        SqlServerName: $(SqlServerName)
        SqlDatabaseName: $(SqlDatabaseName)
        SqlProjectName: $(SqlProjectName)
        ADLSLocation: $(ADLSLocation)

Build and publish artifact

DeploySqlServerless.yml

The second YAML file starts with the parameters that are required to call this script. Then the environment name in the job that you can use to set some approvals. The first step is just for debugging. Showing the parameter values and a treeview of the agent. You should be able to see the artifact folder which is useful to set up the deployment task where you need the paths of the dacpac and publish profile. In the AdditionalArguments property you can override the value of the Storage Account location. If you have multiple just repeat the entire value with a space between it.

parameters:
  - name: env
    displayName: Environment
    type: string
    values:
    - DEV
    - TST
    - ACC
    - PRD
  - name: ServiceConnection
    displayName: Service Connection
    type: string
  - name: SqlServerName
    displayName: Sql Server Name
    type: string
  - name: SqlDatabaseName
    displayName: Sql Database Name
    type: string
  - name: SqlProjectName
    displayName: Sql Project Name
    type: string
  - name: ADLSLocation
    displayName: Azure Data Lake Location
    type: string


jobs:
    - deployment: deploymentjob${{ parameters.Env }}
      displayName: Deployment Job ${{ parameters.Env }}
      environment: deploy-to-${{ parameters.Env }}
      strategy:
        runOnce:
          deploy:
            steps:
            ###################################
            # 1 Show environment and treeview
            ###################################
            - powershell: |
                Write-Output "Deploying ${{ parameters.SqlProjectName }} to DB ${{ parameters.SqlDatabaseName }} and server ${{ parameters.SqlServerName }} in the ${{ parameters.env }} environment"
                Write-Output "Changing SQLCMD variabele DeltaLocation to value ${{ parameters.ADLSLocation }}"
                tree "$(Pipeline.Workspace)" /F
              displayName: '1 Show environment and treeview Pipeline_Workspace'

            ###################################
            # 2 Deploy DacPac
            ###################################
            - task: SqlAzureDacpacDeployment@1
              displayName: '2 Deploy DacPac'
              inputs:
                azureSubscription: '${{ parameters.ServiceConnection }}'
                AuthenticationType: 'servicePrincipal'
                ServerName: '${{ parameters.SqlServerName }}-ondemand.sql.azuresynapse.net'
                DatabaseName: '${{ parameters.SqlDatabaseName }}'
                deployType: 'DacpacTask'
                DeploymentAction: 'Publish'
                DacpacFile: '$(Pipeline.Workspace)/SQL_Dacpac/SQL/${{ parameters.SqlProjectName }}/bin/debug/${{ parameters.SqlProjectName }}.dacpac'
                PublishProfile: '$(Pipeline.Workspace)/SQL_Dacpac/SQL/${{ parameters.SqlProjectName }}/${{ parameters.SqlProjectName }}.publish.xml'
                AdditionalArguments: /Variables:DeltaLocation=${{ parameters.ADLSLocation }}
                IpDetectionMethod: 'AutoDetect'

Deploy Serverless SQL pool database

Conclusion

In this post you learned to apply an 'old fashioned' solution to a relative new service. This solution doesn't only work for the Synapse Serverless SQL Pool, but also for the Synapse Dedicated SQL Pool.

There is still one bug/problem. For the Serverless SQL Pool it seems that updating the External Data Source is not possible. The first deployment is no problem, but altering statements are ignored. Probably because there are already external tables referencing this object. You are probably not updating this external source a lot to make it a big issue, but if you want to do it you can use a pre-deployment script in the database project to first drop those object.

In a next post we will show how to give Power BI access to this Synapse Serverless SQL Pool database.

Thanks to colleagues Ralph Koumans and Bart van Es for helping out setting it up.

Review Synapse notebooks with your GPT model

Case
Since the introduction of ChatGPT in late 2022, people have started to discover the various applications of Large Language Models (LLMs) in coding and beyond. LLM’s can be a helpful sparring partner in developing and reviewing code. As an IT consultant, I've started using LLMs in my coding practices. This made me wonder: ‘Can I automate the use of LLM in my development process?’. Which is Azure Synapse in my case.

And the short answer is: ‘yes, you can’









Solution

This blog serves as a step-by-step guide to integrating GPT 3.5 into your Azure DevOps pipeline for automated code reviews. The solution that I’m proposing checks which files have changed between the source branch and the target branch in a pull request. If one of these changed files is a Synapse notebook, the code is passed on the GPT model on your tenant with the request to provide feedback. The feedback given by the GPT model is posted as a comment in the pull request.

Before you start, make sure you have the following three resources set up and configured correctly. I’ll include links to other step-by-step guides to create the required resources.

Required resources:

• Azure Synapse Workspace
• Create a Synapse Workspace
• Azure DevOps Project (including a repository linked to the Synapse Workspace)
• Link Synapse Workspace to Azure DevOps Repository
• Access to the Microsoft Azure OpenAI service*
• Form to request access to Azure OpenAI service

*Access to the Microsoft Azure OpenAI service is limited at the time of writing.

1) Create a GPT model in Azure OpenAI service

Once you have gained access to the Azure OpenAI service you need to create an OpenAI service and deploy a model. Click here to follow the comprehensive guide by Christopher Tearpak on creating and deploying your GPT model in Azure. The result should be an OpenAI service resource:

Expected result after creating your own OpenAI Service

With a GPT model deployment:

Expected result after deploying your own GPT model

2) Setup and configure Azure DevOps

Scripts
Three scripts must be present in your repository. These scripts can be found at the SynapseBuildValidations repository (which also contains other useful build validation scripts).

Download the scripts from the SynapseBuildValidations repository. Here is what each script does:

• get_GPT_feedback.py: Retrieves and passes your code to GPT and posts the feedback to the pull request.
• requirements.txt: Lists the required Python packages for the above script.
• GPT_code_review.yml: Contains the pipeline configuration.

Expected folder/file structure for your repository







Create variable group
Create a new library under “Pipelines” and give it the name: “GPT_connection_data”.
Add the following variables:

• openai_api_base
• openai_api_key
• openai_api_type
• openai_api_version
• synapse_root_folder

The variables openai_api_base and openai_api_key can be found in the “Keys and Endpoint” tab in your OpenAI resource.

Find your Key and Endpoint in "Keys and Endpoint" of your OpenAI service

Copy the “Endpoint” to “Openai_api_base” and one of the keys to “openai_api_key”.
Openai_api_type needs to be filled with: “azure” and openai_api_version “2023-03-15-preview”.

The variable synapse_root_folder contains the path to the root folder containing the synapse files. In my case it’s just “Synapse”, because all the synapse files can be found in {repository_root}/Synapse

An example of my repository, where the synapse_root_folder is "Synapse"

After you’ve set all your variables, the resulting variable group should look like this:

Expected variable group in Azure DevOps

Create a pipeline

The GPT_code_review.yml contains the pipeline code needed to configure the agent and execute the get_GPT_feedback.py script. You need to create a new pipeline based on the GTP_code_review.yml.

Click here to follow the comprehensive guide by Xeladu on creating a pipeline.

The result should be as follows:

The resulting pipeline after following the guide

Disable “Override YAML continuous integration (CI) trigger”

Now you’ll need to disable the CI trigger of your new pipeline.
Open the pipeline in edit mode, select the three vertical dots and select “Trigger”

Select triggers to change the trigger settings

Then select your project under “Continuous integration”, check “Override the YAML CI trigger”, check disable CI and select “save”.

Steps to disable the CI trigger

Permit pipeline access to variable group resource

After you’ve disabled the CI trigger, you’ll need to start a run. During the run you’ll get a notification that the pipeline needs permission to access a resource. Click on the “View” button and permit the access to the variable group GPT_connection_data by clicking the “Permit” button. The run will continue and eventually fail.

Permit the pipeline to access the variable group

Note that this pipeline is designed to operate only within the context of a pull request. Because it’s dependent on a few system variables that are only present on the build agent during a pull request.

Set rights for build agent
The GPT feedback is posted in comments of the pull request. The build agent needs to have the right to post in the pull request. Go to “Project settings” and select “Repositories”, when you’re in “Repositories” select security and select your “{Projectname} Build Service“.

Steps to select the build service user

Once the build service user is selected, you must grant this user permission to contribute to pull requests.

Set the "Contribute to pull request" to Allow

After these actions, your build agent user has access to write comments to a pull request.

Add the pipeline as build validation
The final step is adding your GPT_Feedback_pipeline as build validation on your desired branch. Go to “Project settings”, select “Repositories” and select the repository where you want to add the pipeline (“DemoProject” in my example). With the repository select “Policies”

Steps to get to the branch you want to set the build validation to

Select the branch where you want to have the build validation.

Select the branch you want to set the build validation to

Within this branch, select the plus icon in the build validation component.

Select the plus to add a pipeline as build validation

In the “Add build policy” pop-up, select the build pipeline: “GPT_Feedback_Pipeline”, set a display name and select “Save”

Pop-up to select a pipeline
as build validation

Now you’re good to go! When you merge another branch into the branch on which you have enabled the branch validation the GPT_Feedback_pipeline will run.

3) Testing

Now its time to perform a pull request. You will see that the validation will first be queued. So this extra validation will take a little extra time, especially when you have a busy agent. The pipeline should always run without errors. When there is no feedback, there won’t be any comments. This means that your code is perfect :) or there aren’t any changes to any of the notebooks. However, when there is feedback, it will be posted in the comments.

Let’s see de build pipeline in action. First off, we need a new branch, in my case a feature branch

1. Create a new branch in Synapse called Feature
2. Create a new notebook
3. Create some sample code in python or SQL

Sample code in Azure Synapse

4. Create a pull request based on your new branch
5. Fill out the details of your pull request and make sure you’re merging into the branch with the GPT build validation
6. Confirm the creation of your pull request.
7. Your pull request is created and the GPT_Feedback pipeline starts running
8. After the pipeline has run successfully and the GPT model gave feedback for improvement. The feedback is posted in the comments of the merge request

GPT response in the comments of your pull request

4) Altering the feedback to your situation

The prompt sent to the GPT model is pre-determined and might not suit your specific situation. At the time of writing, the prompt is included in the get_GPT_feedback.py script. This script contains a get_gpt_response function. The first lines of this function are used to set three strings. These strings contain the prompt for the “system”, “user” and “assistant” roles passed to the GPT model. More on the use of these roles can be found here. To alter the prompts passed to the GPT model, you need to alter the strings: content_system_string, content_assistant_string and/or content_user_string.

Subset of the get_GPT_feedback.py where the GPT commands are set

Conclusion
In this post you learned how to integrate GPT into your deployment pipeline. Your pipeline will provide feedback on your changed of added synapse notebooks. The feedback is posted as comments in the pull request in Azure DevOps. You can customize the prompt to suit your specific needs.

Synapse and ADF Pipeline snack - Disable Activity

Case
Something that we already had in SSIS, but was never implemented in Data Factory or Synapse... until now! You can disable Pipeline activities with Activity State (in preview at the moment of writing)

Disabling Pipeline Activities!

Solution
In each activity (ADF and Synapse) you now have the option to change the state of an Activity from Active to Inactive and after that you can provice the end status that should be used when running this activity in the pipeline: Skipped, Succeeded or Failed.

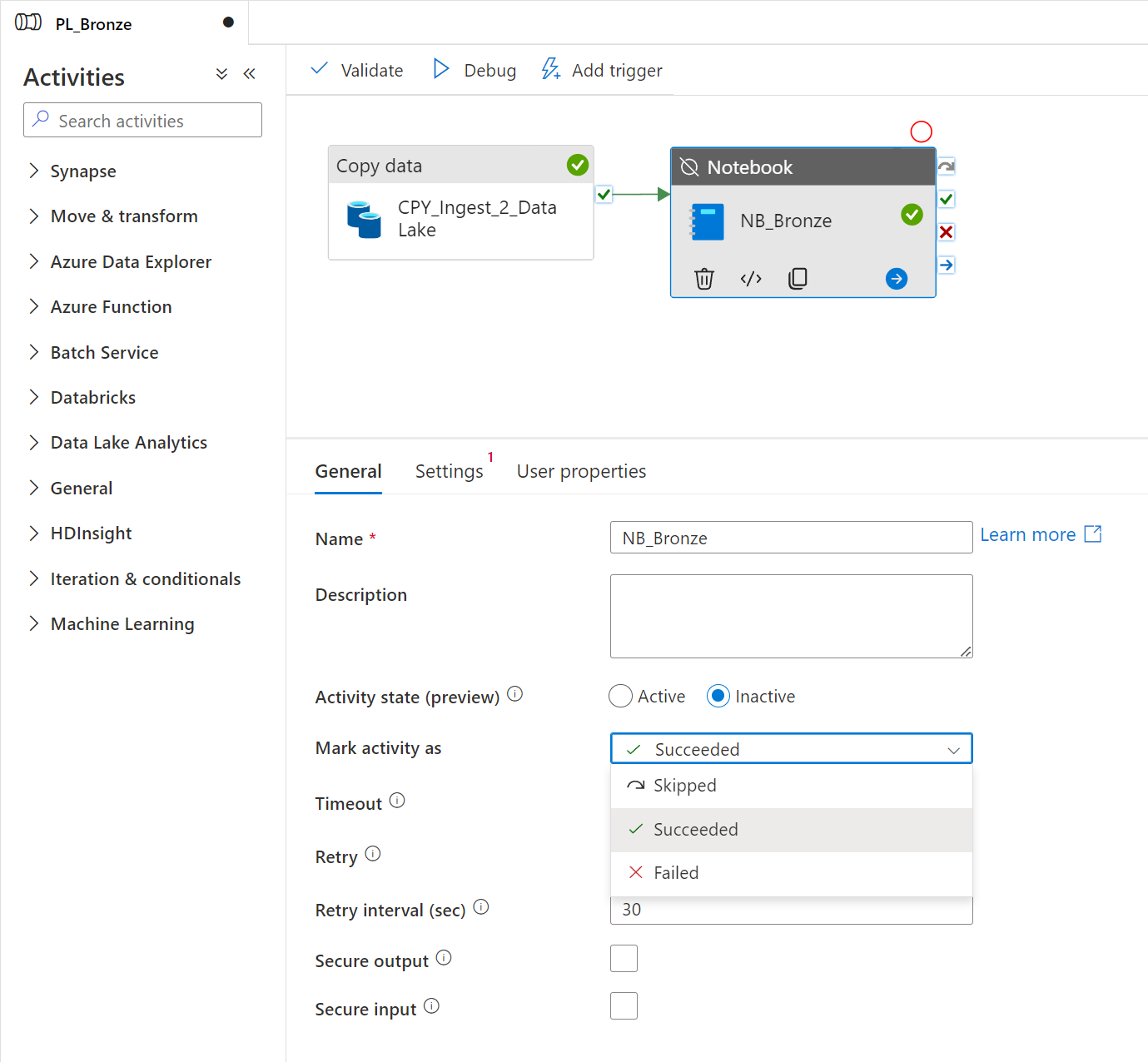

Mark activity as Skipped, Succeeded or Failed

This is extremly useful for debugging and testing parts of your pipeline. You can set it in the properties, but even more simpel is just right clicking the activity (just like in SSIS ♥).

Right click to change activity state

An other great scenario is that you can now disable an activity that is not yet ready and validate the pipeline without getting any errors that required fields are not yet provided. Validating just ignores the disabled activities.

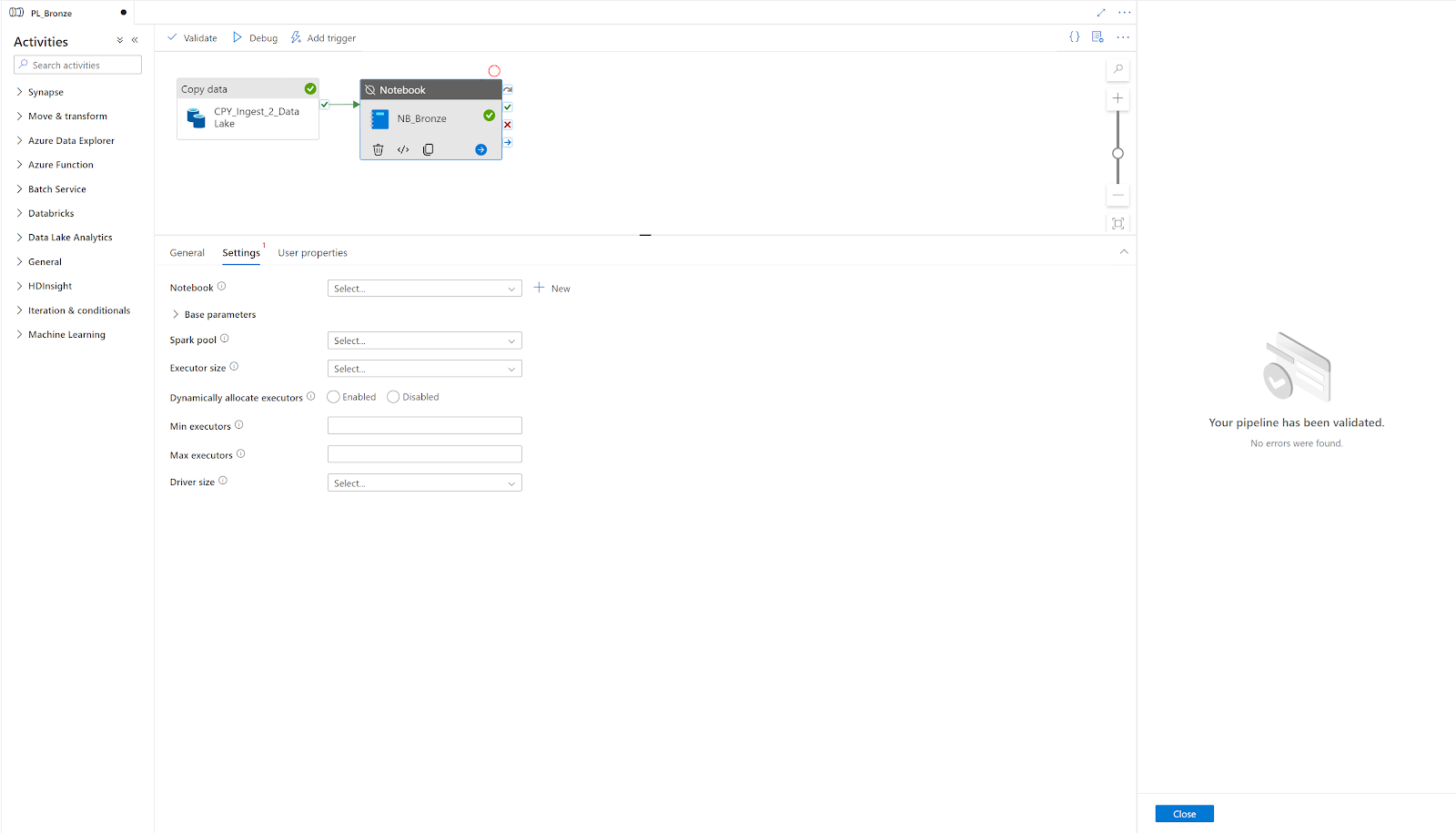

Validating ignores disabled activities

Conclusion

It only took almost 6 years, but this seemingly simple feature could be very useful. It is still in preview but available in Data Factory and Synapse pipelines.

Disable multiple activities at the same time
